Application

• Industrial applications up to 16 or 40 bar.
• Liquid and gaseous media.
• Recommended in: Food & Beverages

Technical information

• Flanged connection in accordance with EN1092-1.
• Floating ball.
• Pressure rating PN16 or PN40.
• With direct-mount top flange in accordance with ISO 5211.
• All components intended to come into contact with food comply with EC 1935.
• Media temperature: -29/+200°C.

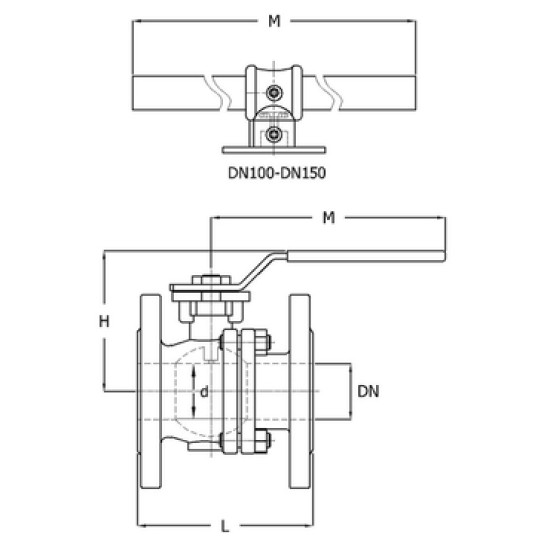

• DN15 to DN80 with lever and locking device.
• DN100 to DN150 with T-bar.
• DN200 as standard with bare stem.

Construction

• Two-piece housing construction.
• Design according to EN 12516-1.
• Full bore.
• Equipped with anti-static design between ball and housing.
• Face-to-face dimension according to EN 558, series 27.

Approval

• Fugitive emission certified in accordance with TA-Luft VDI 2440 / VDI 3479.
• Fugitive emission certified in accordance with ISO 15848-1 BH-CO1 and CH-CO3.
• Fire-safe approval in accordance with ISO 10497 and API 607, sixth edition.
• Safety integrity level IEC 61508 SIL 2.
• Declaration of conformity according to EC 1935/2004.

Options

• Equipped with worm gearbox and pneumatic, electric or hydraulic actuators.
• Position feedback for manually actuated or automated valves.
• Available with seats in TF4215.
• Stainless steel extended spindle type 8007 for insulation.
